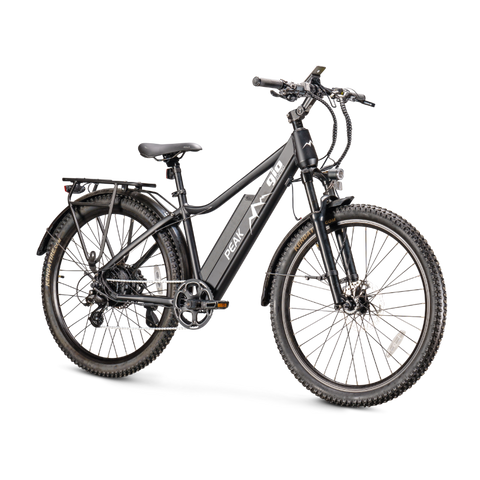

The GIO PEAK Electric Bike is engineered for conquering the mountains and recreational path riding.
New for 2024 Black Version:
- Front and rear fenders
- Rear rack
- Front cable wraps
Highlights:
- BAFANG 48V/500W rear-drive Motor and high quality supporting electrical equipment, a top speed of 20 mph (32 km/h)
- KENDA High quality professional mountain bike tires
- With a torque sensor and throttle, Good climbing ability, Easy ride
- Hydraulic brake with cut-out function and 180MM brake disc, Enhanced braking effect
- Headlight with metal shell, 40 LUX Lighting Effect
Features
Frame | 6061 aluminum alloy, 18" |
Fork | suspension, 27.5" |
Stem | adjustable stem |
Motor | BAFANG 48V/500W rear drive |
Battery | 12Ah, lithium 48V battery |
Display | LCD, multifunctional |
Sensor | torque sensor |
Controller | 9 mosfet 48v 20amp |
Crank set | 42t 175mm PROWHEEL, aluminum alloy |
Light | front - Spanninga light |
Brakes | hydraulic auriga |
Deraileur | Shimano TourneyTX 8 speed |
Throttle | push grip (pedal assist and throttle assist) |
Cassette | 8 speed 11-32 |
Tires | 27.5" x 2.35" KENDA |
Bike weight (no battery) | 53.5lbs |
Battery weight | 6.5lbs |
Max speed | 20 mph (32 km/h) |
Max range | 40 miles (60km) |
Recommended Height | 5.4" to 6.2" |
Recommended Weight | 264 lbs (120 kg) |
